Connectors & Ports	Video Audio USB port Network Power Supply	HDMI Line level, stereo 2x USB 2.0 Ethernet 1GbE, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az Input: 100-240V, 50-60Hz Output: 5V DC 3.6A max.
Size & Weight	Size Weight	Width: 5.9 / 150mm” Height: 0.9 / 23mm” Depth: 3.4 / 86.5mm” 12.3oz / 350g

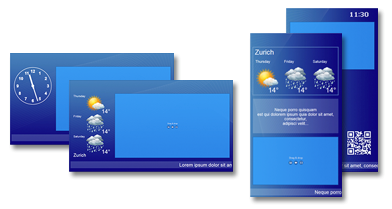

Player Engine	Layer composition Animation Text Fonts	Background plus non-overlapping zones Built-in playouts, apps Unicode support (international text) Bidirectional (right-to-left, left-to-right) Built-in fonts (Western, Cyrillic, Arabic, Greek, Hebrew, Chinese, Japanese, Korean, Thai, Hindi, etc.)
Formats	Images Media file formats Video codecs Audio codecs Data feeds	JPEG, PNG MPG, MP4, M4A, MOV, WMV Multi-video decoding capable, 1080p max H.264/MPEG-4 AVC: HP@L4 MPEG-2: MP@HL MPEG-4: ASP WM9/VC-1: AP@L3 AAC-LC, HE-AAC MPEG Layer I, II, III (MP3) WMAv2 AC3 Built-in RSS app

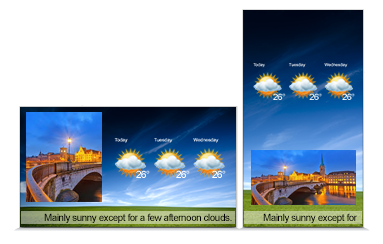

Display	Aspect ratio Resolution	16:9 Horizontal, vertical 1080p (1920x1080), 720p (1280x720) at 50/60 Hz
Network	Protocols Remote configuration Content transfer	DHCP, static IP, Zeroconf IPv4, IPv6 Bonjour HTTP Built-in HTTP server, RPC Web browser upload
Storage	Internal	8GB solid state
Characteristics	Processor Memory Power consumption Operating conditions Storage temperature Real-time clock (RTC)	DaVinci DM8148 (ARM Cortex-A8 1GHz) RAM: 1 GB, DDR3-1066 Bandwidth: 4.3GB/s 8W Ambient temperature 32 - 104ºF / 0 - 40ºC Relative humidity 10-90% noncondensing Altitude 10,000ft / 3,000m max. -4 - 122ºF / -20 - 50ºC Accuracy ±1 min./month Backup by supercap (40 days)

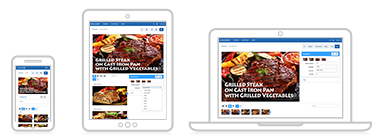

Tools		Built-in web-based content creation and scheduling tools
Warranty		3 Year Limited Hardware Warranty
